The healthcare sector now demands lighter and highly reliable equipment. Consequently, the need for seamless Custom Deep Drawn Metal Enclosures has grown exponentially. Furthermore, medical hardware developers are rapidly transitioning away from heavy CNC-machined blocks and fragile plastics. They now favor the structural integrity of deep drawn aluminum medical device housing. Recently, a leading European medical device manufacturer approached us. They required a flawless, airtight, and EMI-shielded aluminum housing for their next-generation portable diagnostic monitor.

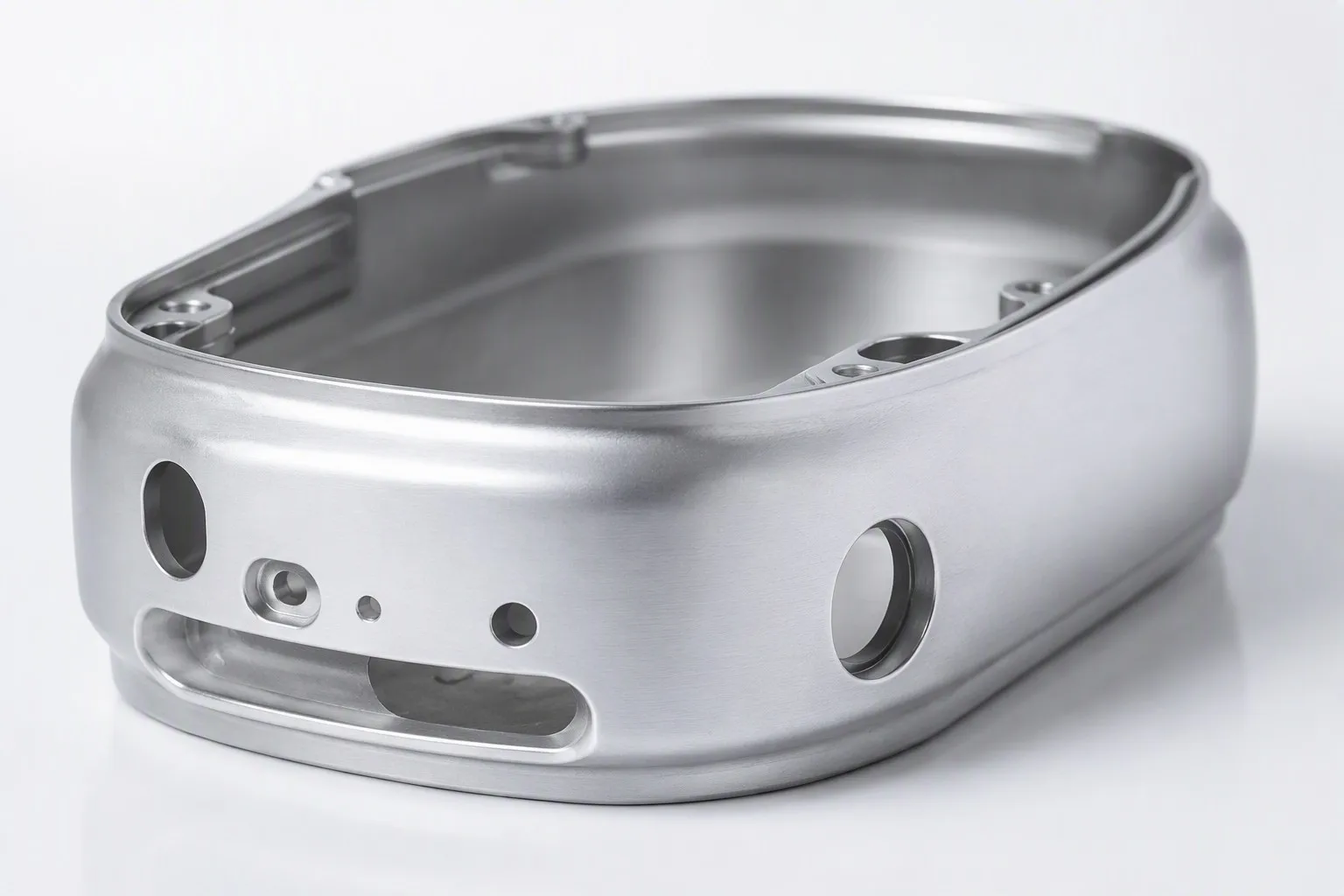

1. Project Overview: Custom Deep Drawn Metal Enclosures
Specifically, this project required a complete engineering overhaul of the client’s previous multi-part assembly. By switching to a seamless metal enclosure manufacturing process, we consolidated components and reduced weight. Moreover, we significantly improved the device’s sanitary rating.
| Specification Metric | Details & Standards |
|---|---|
| Product Manufactured | Custom Deep Drawn Metal Enclosures (Seamless Medical Housing) |
| Industry & Application | Medical Devices & Portable Diagnostics |
| Core Material | Medical-Grade Aluminum Alloy 6061 |
| Primary Processes | Precision Metal Stamping and Deep Drawing, 5-Axis CNC Machining |
| Finishing Treatment | Medical-Grade Aluminum Anodizing Service (Silver / Clear) |
| Certifications Met | ISO 13485, ISO 9001, RoHS Compliant |
| Tolerance Achieved | Wall thickness uniformity of ±0.02 mm |
2. The Challenge: Seamless Hygiene, EMI Shielding, and Portability
First, the manufacturing of these Custom Deep Drawn Metal Enclosures presented strict medical-grade engineering challenges. Ordinary sheet metal fabrication simply could not resolve them:
- Zero-Porosity Sanitary Surface: Initially, the enclosure must be completely seamless. Welded joints, micro-fissures, or sharp internal corners could harbor dangerous bacteria. As a result, they might compromise hospital sterilization procedures.
- EMI/RFI Shielded Metal Enclosures: Additionally, the aluminum housing needs to act as a perfect Faraday cage. It must block external Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI). Otherwise, this interference could disrupt sensitive diagnostic sensors monitoring patient vitals.
- Wall Thickness Uniformity & Impact Resistance: Also, the material cannot thin out drastically at the corners during the deep draw process. Ultimately, maintaining strict thickness ensures the device passes rigorous clinical drop tests.
- Thermal Management: Finally, the enclosure must effectively dissipate heat generated by internal batteries and processing chips. It must do so without relying on external cooling fans, because these are prohibited in sterile environments.
To solve these multi-dimensional challenges, the client partnered with DeepLink Metal Fab. They relied heavily on our decades of expertise as an ISO 13485 certified sheet metal fabricator. Furthermore, they utilized our dedicated custom metal deep drawing service.
3. The DeepLink Solution: Advanced Precision Deep Drawing Workflow
In response, DeepLink designed a multi-stage progressive tooling system. This system gradually stretches the aluminum sheet into a flawless, seamless enclosure. Importantly, it does this without compromising material integrity or grain structure.
Step 1: Multi-Stage Tooling Design & FEA Simulation
Initially, our tooling engineers utilized advanced stamping simulation software. This allowed them to calculate the exact plastic deformation flow of the Aluminum 6061 sheet. Next, we designed a custom progressive deep draw die system. This tool forms the enclosure over five gentle, calculated stages. Consequently, this step-by-step deformation avoids material tearing, wrinkling, or excessive thinning at the deep corners. For more details, you can see all our heavy-duty capabilities in our custom sheet metal fabrication services section.
Step 2: Precision Metal Stamping and Deep Drawing
Subsequently, we seamlessly formed the aluminum blanks into the final enclosure shape. We achieved this by utilizing high-tonnage hydraulic presses equipped with specialized medical-grade, residue-free forming lubricants. This deep drawing process guarantees a unibody construction. Therefore, it eliminates the need for complex multi-part welding. Besides, it provides superior structural rigidity and produces tight tolerance deep drawn stampings.
Step 3: Secondary 5-Axis CNC Machining
While the enclosure body is drawn into a single seamless tub, certain features required incredibly tight tolerances. Specifically, the precise cutouts for LCD screens, tactile buttons, and sensor I/O ports needed exact dimensions. Therefore, we transferred the drawn shells to our 5-axis machines via our custom CNC milling service. This allowed us to cut complex geometries flawlessly. As a result, we left no micro-burrs that could damage internal electronics or snag surgical gloves.
Step 4: Medical-Grade Aluminum Anodizing Service
Following that, we processed the enclosures through a custom Silver Anodizing bath. This step was crucial to provide a sterile, easy-to-clean, and highly durable surface. This electrochemical process hardens the aluminum surface, thus preventing scratches. Moreover, it protects the enclosure from harsh hospital-grade cleaning chemicals like bleach and alcohol wipes. This is fully supported by our premium metal finishing services.
Step 5: Sub-Assembly and Quality Control
Prior to shipping, our team installed custom EMI gaskets and threaded inserts. We handled this using our custom metal assembly services. Finally, every unit underwent a 100% 3D CMM (Coordinate Measuring Machine) inspection. This rigorous check verified all critical internal dimensions.
4. The Results: Flawless Delivery & Enhanced Clinical Durability
By executing a rigorous quality control system under ISO 13485 standards, DeepLink achieved outstanding metrics. Indeed, these Custom Deep Drawn Metal Enclosures delivered exceptional results:
- 100% Seamless Integration: First and foremost, the unibody design completely eliminated hygiene blind-spots and weak points. Consequently, the client’s device seamlessly passed strict FDA sanitation and safety reviews.
- ±0.02 mm Thickness Uniformity: Furthermore, advanced progressive tooling prevented corner thinning. As a result, the device successfully passed a 1.5-meter clinical drop test onto concrete.
- 25% Weight Reduction: Compared to their previous CNC-machined solid block design, the deep drawn aluminum shell was much lighter. Therefore, it significantly enhanced the portability of the diagnostic monitor for nurses and doctors.
- Superior Thermal & EMI Performance: Finally, the continuous aluminum unibody acted as an exceptional heatsink and a perfect EMI shield. Accordingly, this improved the device’s battery life by 12% and stabilized sensor readouts.
5. Engineer’s Insight: The Power of Seamless Forming in Healthcare
“For medical hardware, seams are clear liabilities. Deep drawing allows us to manipulate metal at a molecular level. Thus, we pull it into a 3D shape that is naturally stronger and infinitely easier to sterilize. By combining custom metal formed components for healthcare with post-draw CNC machining, we offer clients the perfect solution. Ultimately, it is the perfect marriage of industrial durability, mass-production cost efficiency, and uncompromising medical hygiene.”
— Lead Tooling Engineer, DeepLink Metal Fab
