Why Choose DeepLink for Custom Metal Bending Services

DeepLink Metal Fab operates 12+ CNC press brake bending machines with tonnage from 40T to 300T, delivering plus-minus 0.1 degree angle precision on sheet metal from 0.5mm to 12mm thickness. As an ISO 9001:2015 certified custom metal bending service provider in China, we handle everything from single-piece prototypes (2-3 day turnaround) to high-volume production runs for global OEM clients in automotive, aerospace, medical device, electronics, and industrial equipment sectors.

Metal Bending Capabilities

• Bending Technology: CNC press brake bending, roll bending, folder bending, tube bending
• Press Brake Tonnage: 40T, 80T, 100T, 160T, 250T, 300T
• Materials: Stainless steel (304/316), aluminum (5052/6061), carbon steel, brass, copper, galvanized steel
• Thickness Range: 0.5mm to 12mm (varies by material)
• Bending Length: Up to 3200mm
• Angle Tolerance: plus-minus 0.1 degrees
• Bend Radius: From 0.5mm to 200mm
• Lead Time: 2-3 days for prototypes, 7-15 days for production
• Order Volume: 1 piece to 100,000+ units

What is Metal Bending?

Metal bending is a cold-forming manufacturing process that plastically deforms sheet metal or metal tube along a straight axis to create angular or curved geometries without heating. Modern bending relies on CNC press brake machines to achieve high repeatability and tight tolerances impossible with manual methods. It is one of the most essential operations in sheet metal fabrication, second only to cutting in production volume.

Common Metal Bending Methods

• Air Bending: Most flexible method. The punch stops above the die without touching bottom. Allows one tool set to produce many bend angles. Ideal for prototypes and short runs.
• Bottom Bending: Punch fully seats material into V-die for maximum accuracy and repeatability. Preferred for tight tolerance production.
• Coining: Extreme pressure permanently deforms material, achieving highest angular precision (plus-minus 0.25 degrees). Used for thin, high-precision parts.
• Roll Bending: Three-roll or four-roll machines produce cylinders, cones, and large-radius arcs from flat sheet or plate.
• Folding: Clamp holds sheet while a folding beam rotates upward, ideal for long thin parts and profile production.

Key Advantages of Custom Metal Bending

• High Structural Strength: Bent geometries add rigidity without additional weight or welding
• Cost-Effective: No secondary tooling required for common bend angles, low per-piece cost
• Fast Turnaround: Programmable CNC press brakes deliver 2-3 day prototyping
• Material Efficiency: Nested cutting plus bending eliminates welded joints and reduces material waste
• Design Flexibility: Complex box, channel, hat, and radius profiles from a single flat blank

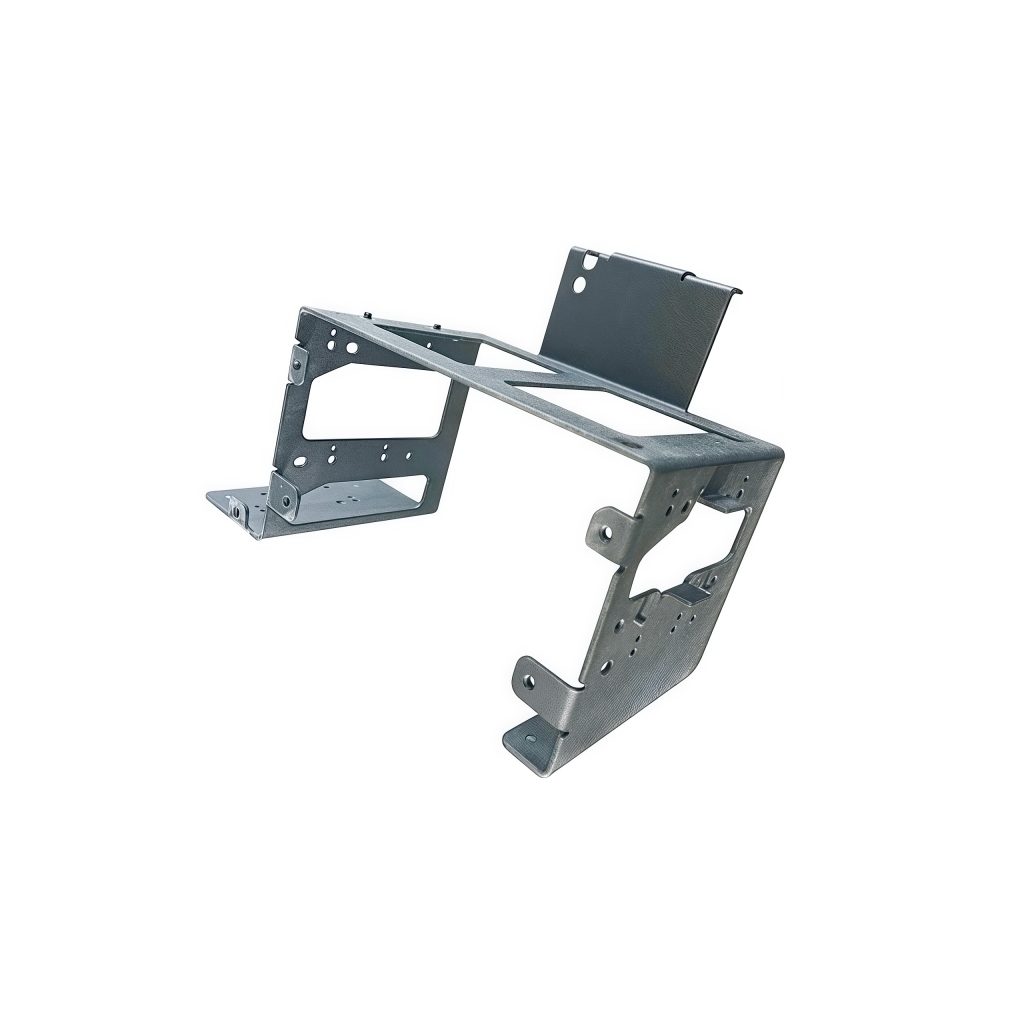

Common Applications of Custom Bent Metal Parts

Custom metal bending serves industries including automotive (chassis brackets, seat frames, exhaust components), aerospace (structural stiffeners, ductwork, panels), medical devices (equipment cabinets, mounting brackets), electronics (server racks, chassis, heat sinks, EMI enclosures), construction (metal roofing, facades, HVAC ducts), and industrial machinery (guards, hoppers, frames, control panels).

How DeepLink Custom Metal Bending Service Works

From CAD file upload to precision-bent parts delivered worldwide, our custom metal bending workflow ensures accuracy, speed, and full quality traceability.

1. Upload CAD Files and Get Instant Quote

Upload 2D DXF flat patterns or 3D STEP/STP/SLDPRT files through our secure quote portal. Our engineering team responds within 24 hours with a detailed quotation including material, thickness, bend allowance, tooling, and lead time.

2. Free DFM Analysis with Bend Optimization

Our engineers verify every bend for manufacturability, checking minimum flange length, bend radius, K-factor, collision clearance, and tool availability. We recommend design adjustments to reduce cost, improve bend consistency, or eliminate secondary operations.

3. Material Sourcing and Precision Cutting

Certified sheet metal from qualified mills is laser-cut or CNC-punched to precise flat blanks with bend line marks and orientation notches for downstream press brake accuracy.

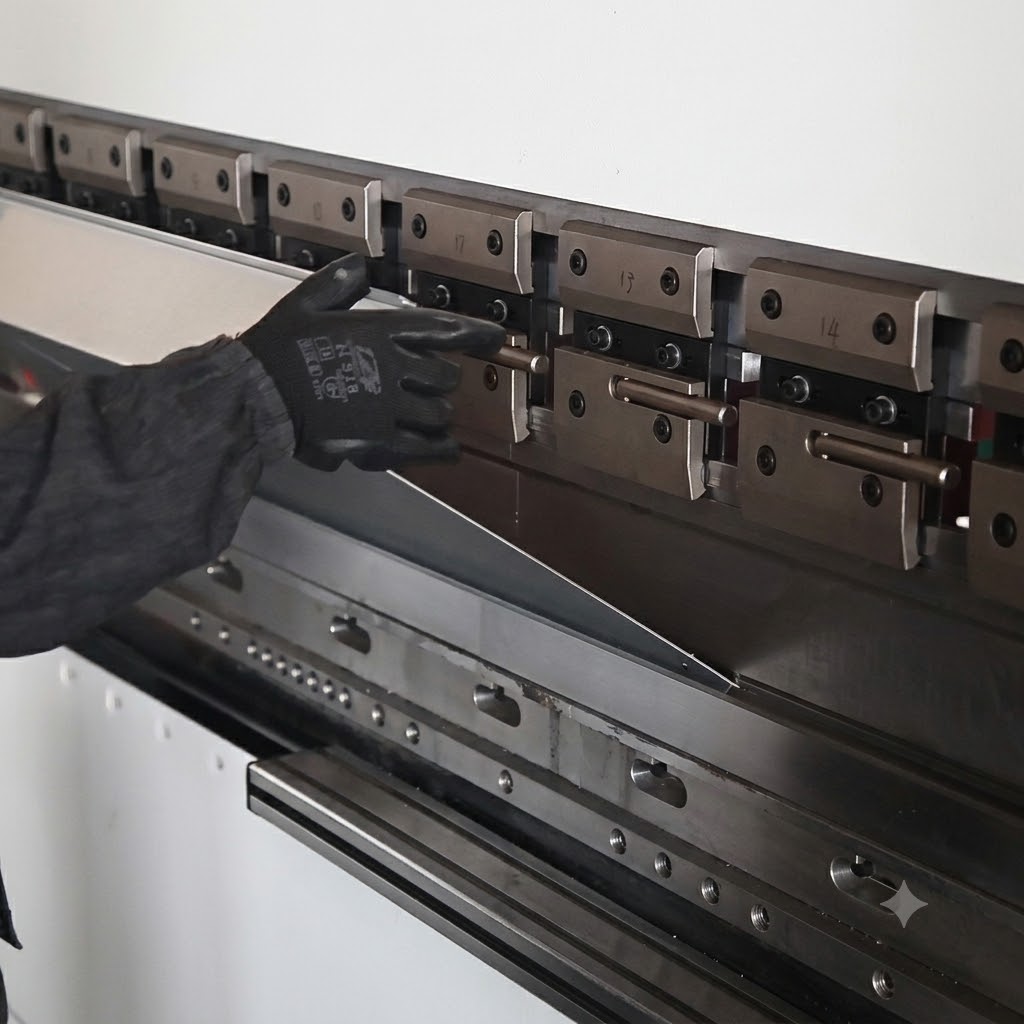

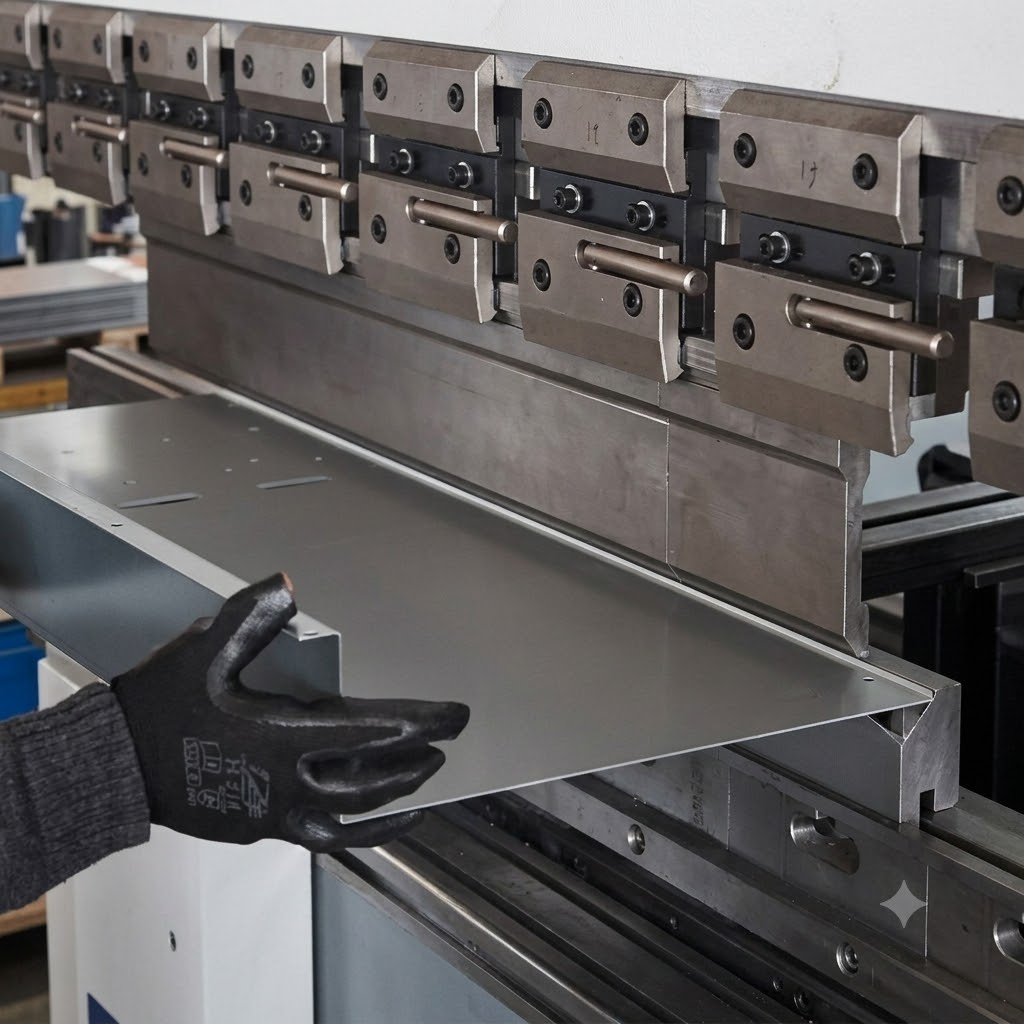

4. CNC Press Brake Bending Production

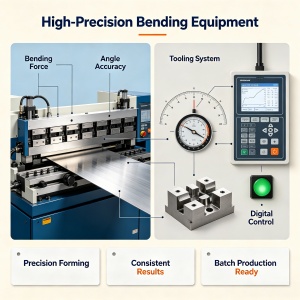

CNC-programmed press brakes with hydraulic crowning and back-gauge automation deliver plus-minus 0.1 degree angle precision. Multi-station tool changers enable rapid setup for complex parts with 5+ bends.

5. Multi-Stage Quality Inspection and Shipping

Every bent part undergoes angle verification using digital protractors and 3D CMM measurement. FAIR/PPAP reports available on request. DDP shipping to 50+ countries via DHL, FedEx, or sea freight for bulk orders.

Available Surface Finishes for Custom Bent Metal Parts

DeepLink offers comprehensive post-bending surface finishing services to enhance corrosion resistance, appearance, and performance of your custom bent metal parts.

Powder Coating

Electrostatically applied dry powder cured to a durable, uniform finish. Available in 200+ RAL colors, textures (matte, satin, gloss, wrinkle), and specialty finishes (metallic, high-temperature, anti-graffiti). Ideal for industrial enclosures, brackets, and outdoor equipment.

Anodizing (Aluminum Parts)

Type II clear/color anodizing (5-25 micrometers) and Type III hard anodizing (25-50 micrometers) for wear resistance. Custom color matching including black, red, blue, gold, and clear.

Plating

Zinc plating (yellow/blue/black), nickel plating, chrome plating, and electroless nickel for corrosion protection and decorative finish on steel bent parts.

Brushing and Polishing

Brushed satin finish (#3, #4), mirror polishing (#7, #8), and bead blasting on stainless steel for architectural and food-grade applications.

Passivation

Chemical treatment removes surface iron contamination from stainless steel bent parts, restoring passive chromium oxide layer for maximum corrosion resistance.
