Why Choose DeepLink for Custom Metal Deep Drawing Services

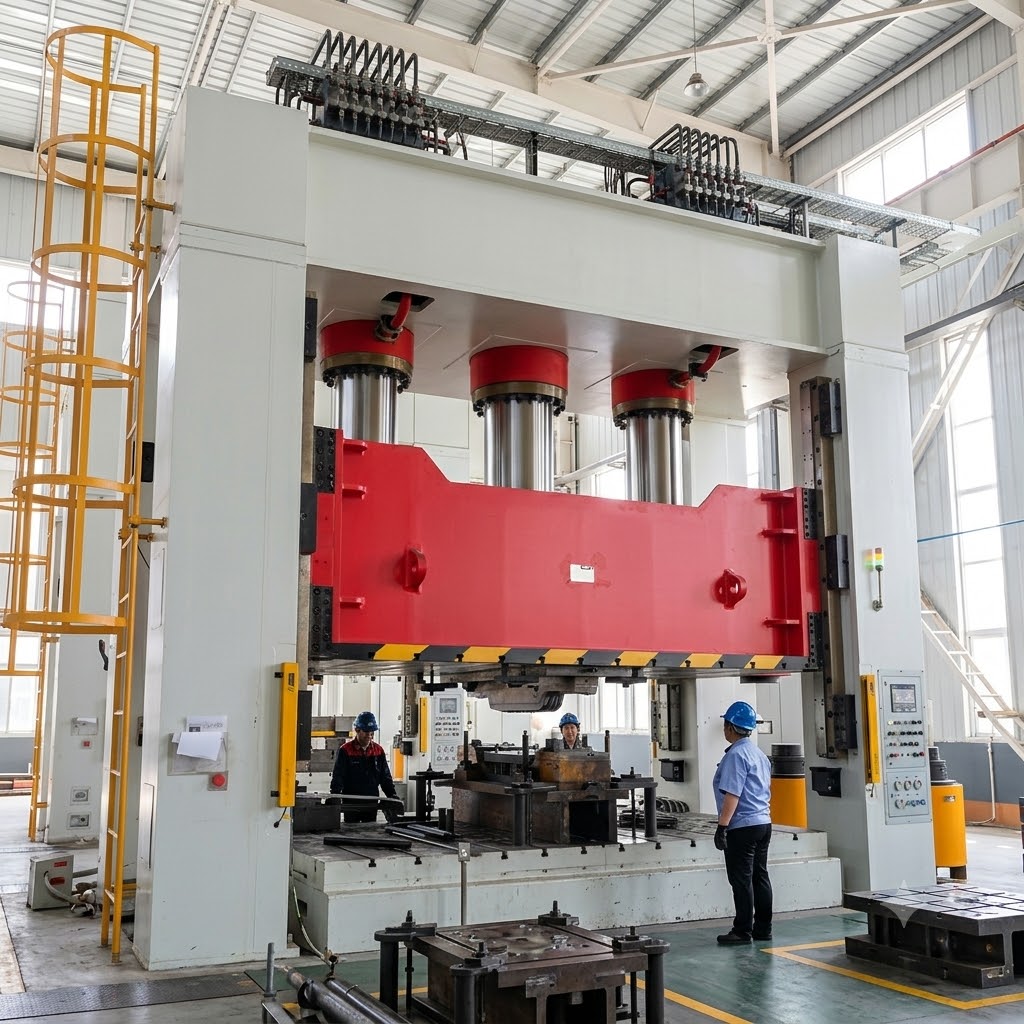

DeepLink Metal Fab operates 15+ hydraulic and mechanical deep drawing presses from 100T to 1000T, delivering plus-minus 0.05mm wall thickness precision on seamless drawn parts up to 300mm depth. As an ISO 9001:2015 certified custom deep drawing service provider in China, we combine advanced multi-stage drawing dies with in-process annealing to produce complex enclosures, cans, cups, and cylindrical components for cookware, cosmetic packaging, medical device, aerospace, and automotive industries.

Deep Drawing Capabilities

• Drawing Technology: Single-action deep drawing, double-action deep drawing, redrawing, ironing, hydroforming
• Press Tonnage: 100T, 200T, 315T, 500T, 800T, 1000T
• Materials: Stainless steel (304/316), aluminum (1050/3003/5052), low-carbon steel (SPCC/SPCE), copper (C11000), brass (H62/H65)
• Blank Thickness Range: 0.2mm to 3.0mm
• Draw Depth: Up to 300mm (depending on diameter)
• Draw Diameter: 10mm to 600mm
• Wall Thickness Tolerance: plus-minus 0.05mm
• Tooling: In-house progressive deep drawing die design and manufacturing (3-8 weeks lead time)
• Order Volume: 500 to 5,000,000+ units per year
• Lead Time: 3-5 days for prototypes, 20-40 days for production after tooling

What is Metal Deep Drawing?

Metal deep drawing is a sheet metal forming process where a flat metal blank is radially drawn into a forming die by the mechanical action of a punch, producing a seamless three-dimensional part such as a cup, can, or box. Unlike bending or stamping, deep drawing significantly increases the depth-to-diameter ratio of the part (draw ratio typically 0.5 to 2.5), producing hollow structures that would otherwise require welding or joining.

Common Deep Drawing Methods

• Single-Action Deep Drawing: One punch draws the blank into the die in a single stroke. Ideal for shallow parts with depth less than diameter.
• Double-Action Deep Drawing: Blank holder and punch operate independently, controlling material flow to prevent wrinkling. Used for deeper parts.
• Progressive Deep Drawing: Multiple drawing stations progressively increase depth in stages. Enables draw ratios above 2.0 without material failure.
• Redrawing: Secondary draws on already-drawn parts to further increase depth or reduce diameter.
• Ironing: Reduces wall thickness of drawn part while increasing height. Used for beverage cans and aerosol containers.

Key Advantages of Custom Metal Deep Drawing

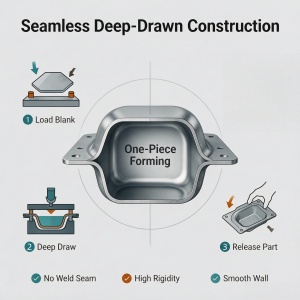

• Seamless Construction: No welded joints means better corrosion resistance and structural integrity
• High-Volume Efficiency: Production rates up to 60 parts per minute for automated deep drawing lines
• Excellent Surface Finish: Smooth outer walls suitable for direct decoration without secondary finishing
• Weight Reduction: Thinner walls achievable through ironing without sacrificing strength
• Complex Geometries: Multi-step drawing produces stepped, tapered, and conical shapes impossible with other methods

Common Applications of Custom Deep-Drawn Metal Parts

Custom metal deep drawing serves industries including cookware and kitchenware (pots, pans, sinks), cosmetic packaging (perfume caps, lipstick cases, jars), food and beverage (cans, containers, closures), medical devices (surgical cups, implant housings, device enclosures), aerospace (fuel tanks, structural cups), automotive (oil filters, fuel tank components), and industrial (motor housings, battery enclosures, hydraulic cylinders).

How DeepLink Custom Metal Deep Drawing Service Works

From CAD file upload to seamless deep-drawn parts delivered worldwide, our custom deep drawing workflow ensures precision, tooling investment protection, and full quality traceability.

1. Upload CAD Files and Get Quote

Upload 3D STEP/STP/SLDPRT files with target quantity and lifetime volume estimates. Our engineering team responds within 24 hours with tooling cost, per-piece pricing, and delivery timeline.

2. Free DFM Analysis with Deep Drawing Optimization

Our tooling engineers analyze draw ratio, corner radii, flange design, blank size, and material grain direction. We recommend geometry adjustments and material grade selection to prevent tearing, wrinkling, or thinning.

3. In-House Progressive Deep Drawing Die Design and Build

Multi-stage deep drawing dies designed in UG/AutoCAD and manufactured on 5-axis CNC and wire EDM machines within 3-8 weeks. Dies include intermediate annealing stations if required. Tryout with sample parts approved by customer before mass production.

4. Automated Deep Drawing Production

Hydraulic and mechanical presses (100T to 1000T) with servo-controlled blank holders deliver plus-minus 0.05mm wall thickness precision. In-process lubrication and inter-stage annealing enable draw ratios above 2.0.

5. Quality Inspection and Global Shipping

Full dimensional inspection with ultrasonic wall thickness gauges, CMM, and optical projection. FAIR/PPAP reports available on request. DDP shipping to 50+ countries via DHL, FedEx, or sea freight for bulk orders.

Available Surface Finishes for Custom Deep-Drawn Metal Parts

DeepLink offers comprehensive post-drawing surface finishing services to enhance corrosion resistance, appearance, and functional performance of your custom deep-drawn metal parts.

Electropolishing (Stainless Steel)

Electrochemical process removes surface layer to produce ultra-smooth, mirror-bright finish with enhanced corrosion resistance. Standard for medical, pharmaceutical, and food-grade deep-drawn cups and containers.

Anodizing (Aluminum)

Type II clear/color anodizing (5-25 micrometers) for cosmetic packaging and consumer product cups. Type III hard anodizing for wear-resistant automotive and industrial parts.

Powder Coating

Electrostatically applied dry powder cured to a durable finish. Available in 200+ RAL colors including textured, metallic, and specialty finishes. Ideal for cookware, appliances, and industrial enclosures.

Plating

Nickel plating, chrome plating, zinc plating, and gold plating for decorative and corrosion protection on steel and brass deep-drawn parts.

Passivation and Cleaning

Chemical passivation for stainless steel restores passive chromium oxide layer. Ultrasonic cleaning and vapor degreasing prepare parts for cleanroom or medical assembly.
