DeepLink provides premium Precision Aluminum CNC Tube Bending for the medical device industry. By utilizing lightweight 6061-T6 aluminum alloy, state-of-the-art 5-axis CNC rotary draw bending, and precise TIG welding, we fabricated high-strength mobility frames. Consequently, this ISO 13485-compliant manufacturing process reduced total assembly weight by 22% while maintaining absolute dimensional repeatability across high-volume production runs.
The medical mobility and rehabilitation equipment sector requires manufacturing standards where failure is not an option. Consequently, Precision Aluminum CNC Tube Bending has become a critical process for developing modern, lightweight, and durable patient transport solutions. Recently, a leading European medical device manufacturer approached us. They needed a highly reliable manufacturing partner to produce complex, multi-bend tubular aluminum frames for a new line of active wheelchairs.
1. Project Specifications: Medical Grade Aluminum Tube
To assist procurement managers and engineering teams, here is the structured technical data defining this precision tube fabrication project:
| Specification Metric | Technical Details & Standards |
|---|---|
| Product Class | Medical Mobility Tubular Frames (Wheelchairs & Walkers) |
| Material Selected | Aluminum Alloy 6061-T6 (High Yield Strength to Weight Ratio) |
| Core Fabrication | 5-Axis CNC Rotary Draw Bending, Fiber Laser Tube Cutting, TIG Welding |
| Quality Standard | ISO 13485 Compliant Process Execution |
| Surface Finish | Clear Medical-Grade Anodizing for Sanitary Protection |
2. Engineering Challenges in Medical Mobility Frames
Fabricating a custom tubular aluminum chassis for medical applications involves distinct technical hurdles:
- Weight vs. Strength Ratio: The frame must be light enough for easy patient maneuverability, yet strong enough to pass rigorous dynamic load testing. Therefore, ordinary carbon steel was rejected in favor of high-grade aluminum.
- Complex Bend Geometries: The ergonomic design required continuous, multi-radius bends in a single length of tubing. Consequently, traditional manual bending would cause severe material thinning and wrinkling.
- Sanitary Finishing Requirements: Medical environments demand flawless surfaces. Any weld spatter, porosity, or rough edges can harbor bacteria, violating strict medical standards.
3. The Fabrication Solution: Advanced CNC Tube Bending
DeepLink engineers implemented a fully automated tube processing workflow to ensure absolute consistency.
Step 1: Fiber Laser Tube Cutting

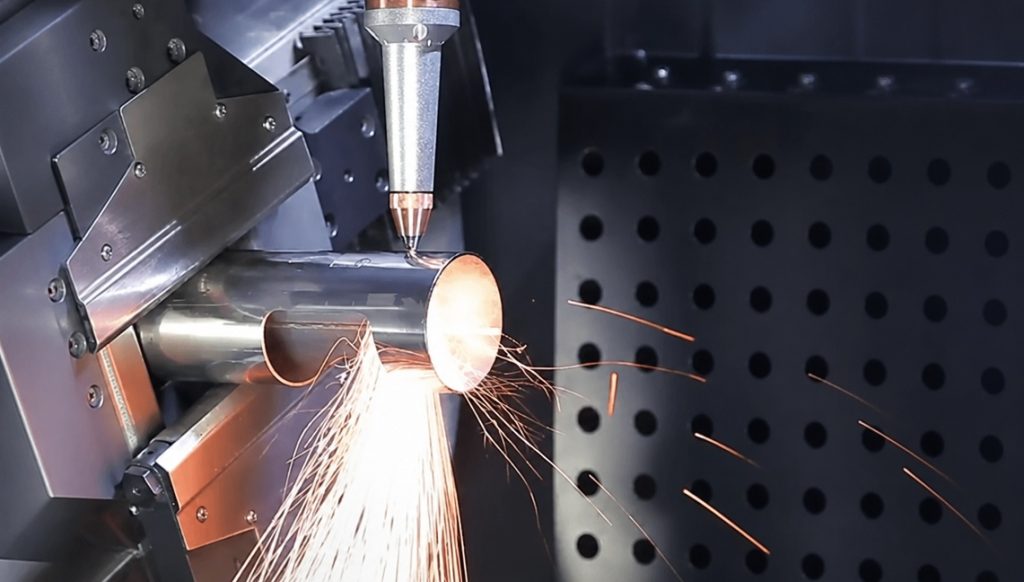

First, we utilized our advanced 3D fiber laser tube cutter. This machine accurately slices the raw 6061-T6 aluminum tubes to length and cuts complex intersecting copes in a single operation. This eliminates secondary machining and ensures perfectly flush weld joints.
Step 2: 5-Axis Precision CNC Tube Bending

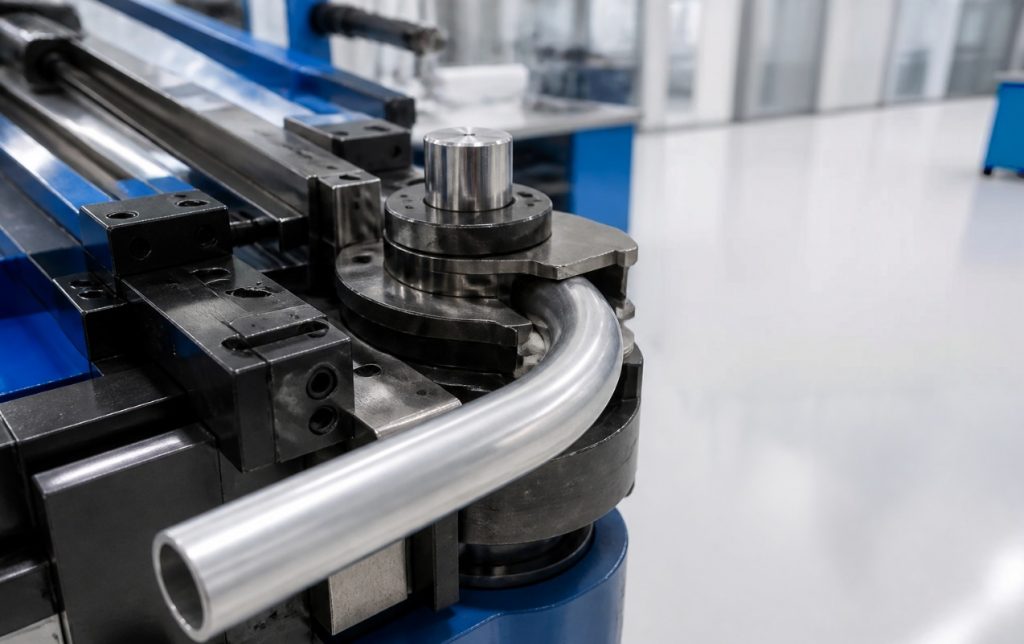

Next, the cut profiles moved to our fully electric 5-axis CNC tube bending centers. By employing precise internal mandrels and wiper dies, we executed tight-radius bends without any tube distortion, flattening, or structural weakening. This robotic consistency is the hallmark of premium Precision Aluminum CNC Tube Bending.
Step 3: Aerospace-Grade TIG Welding
Following the bending phase, our certified welders assembled the components. Because aluminum dissipates heat rapidly, we utilized high-frequency TIG (Tungsten Inert Gas) welding. This method provides superior control, resulting in visually flawless, high-strength joints perfectly suited for medical equipment.
Step 4: Medical-Grade Anodizing
Finally, we subjected the welded frames to a clear anodizing process. This electrochemical treatment hardens the aluminum surface, providing exceptional corrosion resistance and a highly aesthetic, easy-to-clean sanitary finish.
4. Quantifiable Results & ROI for the Client
By upgrading their manufacturing process to DeepLink’s automated tube fabrication solutions, the client achieved significant operational improvements:
- 22% Weight Reduction: By optimizing the bend radii and wall thickness, we reduced the overall frame weight by 22% compared to their legacy design.
- Zero Scrap Rate: Our CNC programmed bending ensured 100% dimensional repeatability, eliminating costly assembly line misalignments and scrap.
- Faster Time to Market: Consolidating laser cutting and CNC bending under one roof reduced the total supply chain lead time by 3 weeks.
5. FAQ: Precision Aluminum CNC Tube Bending
Q: Why use Aluminum 6061-T6 for CNC tube bending?
A: Aluminum 6061-T6 offers an outstanding strength-to-weight ratio and excellent corrosion resistance. While it requires specialized mandrel bending techniques to prevent cracking, it is the ideal alloy for lightweight structural frames.
Q: What is the advantage of CNC rotary draw bending over manual bending?
A: CNC rotary draw bending utilizes programmable axes and internal mandrels to prevent tube ovality. Consequently, it delivers perfect repeatability and smooth curves, which is critical for Precision Aluminum CNC Tube Bending in high-volume production.
Q: Can DeepLink manufacture custom profiles that meet ISO 13485 standards?
A: Yes. We operate strict quality management systems tailored for medical device components, ensuring every bent and welded assembly meets stringent traceability and sanitary requirements.
Q: Do you offer rapid prototyping for tubular aluminum frames?
A: Absolutely. Our fiber laser tube cutting and CNC bending capabilities require zero hard tooling changes for most standard radii, allowing us to produce rapid, no-MOQ custom prototypes in days.
6. Engineer’s Insight: Mastering Aluminum Tube Geometries
“Bending thin-wall aluminum tube for medical applications is unforgiving. Unlike steel, aluminum is highly susceptible to wrinkling on the inside radius and thinning on the outside. By integrating precise CNC control with custom wiper dies, we eliminate material stress points, guaranteeing that the frame looks flawless and performs safely under dynamic human loads.”
— Lead Manufacturing Engineer, DeepLink
Source Your Precision Tubular Assemblies Today
Whether you are developing medical mobility equipment, lightweight aerospace racks, or high-performance automotive chassis, DeepLink delivers unmatched Precision Aluminum CNC Tube Bending. We combine cutting-edge laser tube processing with certified TIG welding to bring your designs to reality.
Contact our engineering team today to request a DFM review and technical quote for your next custom tube fabrication project.
