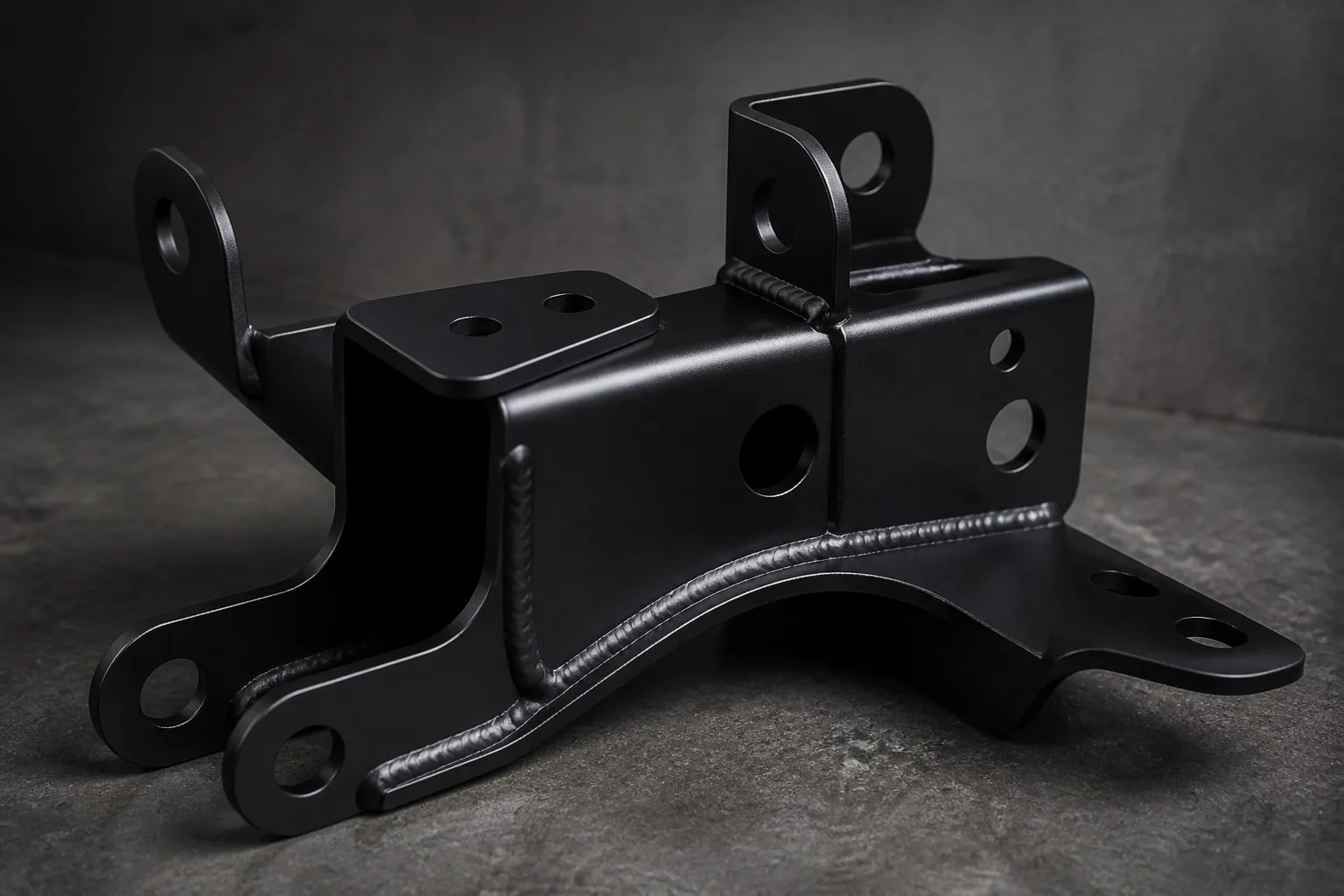

As the automotive sector transitions toward electrification, the demand for Custom Stainless Steel EV Brackets has surged. A leading European Tier-1 automotive supplier required a highly reliable structural bracket to secure battery-pack cooling systems to the vehicle chassis.
1. Project Overview: Custom Stainless Steel EV Brackets
| Specification Metric | Details & Standards |
|---|---|
| Product Manufactured | Custom Stainless Steel EV Brackets (Heavy-Duty Chassis Mounts) |
| Industry & Application | Electric Vehicle (EV) Chassis & Structural Battery Pack Support |
| Core Material | High-Strength Stainless Steel 304 (SUS304) |
| Primary Processes | CNC Laser Cutting, Press Brake Bending, TIG Welding, Assembly |
| Finishing Treatment | Matte Black Powder Coating (Anti-Corrosion / 1000-Hour Salt Spray Tested) |
| Certifications Met | IATF 16949, ISO 9001, RoHS & REACH Compliant |
| Tolerance Achieved | Precision linear tolerance of ±0.05 mm |
2. The Challenge: Extreme Durability and Strict EV Tolerances
The manufacturing of these Custom Stainless Steel EV Brackets presented three major engineering challenges:
- Corrosion Resistance: The component resides underneath the vehicle chassis, exposing it constantly to road salt, moisture, and debris.
- Strict Tolerances: Due to automated robotic assembly lines, a strict linear tolerance of ±0.05 mm was mandatory to prevent automated system jams.
- Vibration & Structural Integrity: The bracket must withstand continuous high-frequency vibrations from electric motors without weld fatigue or deformation.
To solve these challenges, the client turned to DeepLink Metal Fab, leveraging our 39+ years of experience in high-end industrial and custom metal fabrication for automotive industry.
3. The DeepLink Solution: Step-by-Step Precision Fabrication Workflow
DeepLink designed and executed an end-to-end manufacturing strategy integrating advanced sheet metal processing with rigorous quality control.
Step 1: Material Selection and 3D CAD Optimization
We selected premium-grade High-Strength Stainless Steel 304. Our engineering team optimized the client’s 3D CAD files for manufacturability, simulating stress loads using Finite Element Analysis (FEA). Complete material traceability was maintained, matching our standard custom steel fabrication service certifications.

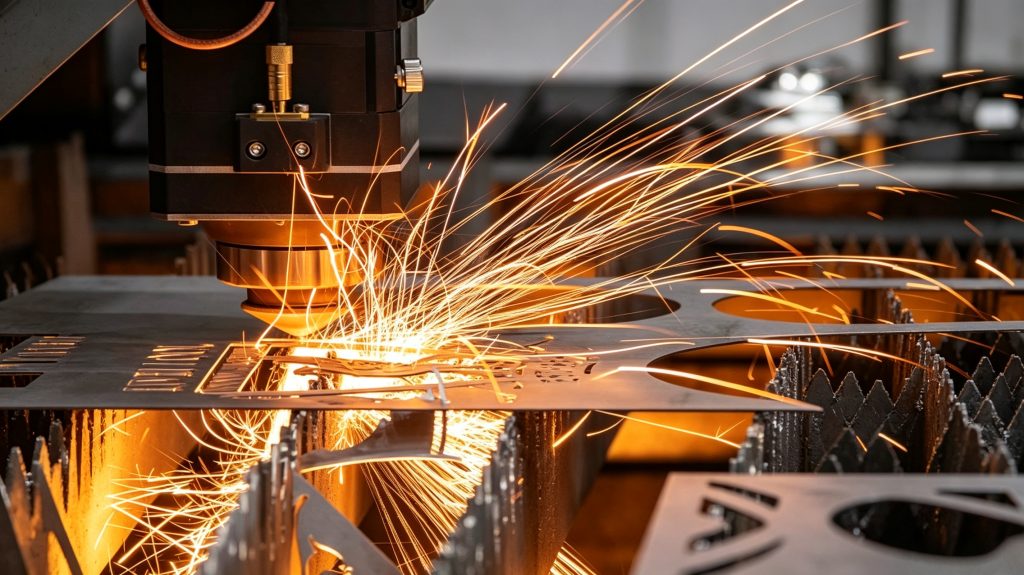

Step 2: CNC Laser Cutting
To achieve perfect, burr-free edges, we processed the sheet metal using our state-of-the-art 10kW fiber laser cutters. This approach guaranteed the strict cylindrical tolerances required for the EV battery pack mating face mounting holes.

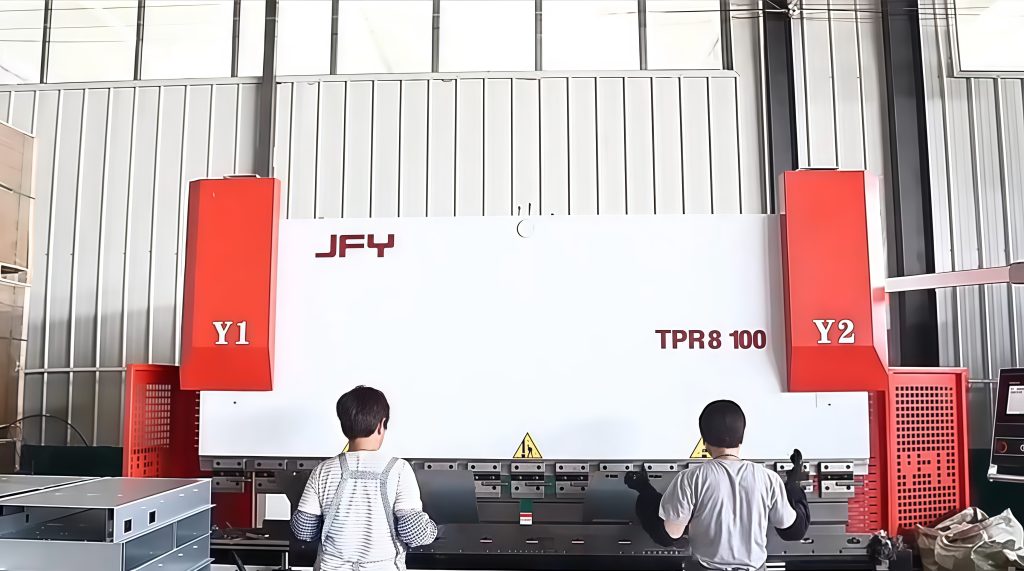

Step 3: CNC Press Brake Bending
The chassis bracket required complex bends at precise angles. Using multi-axis CNC press brakes, our technicians executed high-repeatability bending. By utilizing custom radius tooling, we prevented microscopic stress cracking at the bend lines, maintaining maximum material strength. You can explore our specific capabilities via our dedicated CNC press brake bending service page.
Step 4: Robotic-Assisted Welding & Sub-Assembly
To ensure flawless weld joints capable of resisting lifetime vehicle vibration, we utilized robotic-assisted precision TIG welding. This guaranteed uniform penetration and eliminated the human error common in manual welding. Post-welding, we completed structural riveting and sub-assembly processes through our comprehensive custom metal assembly services.

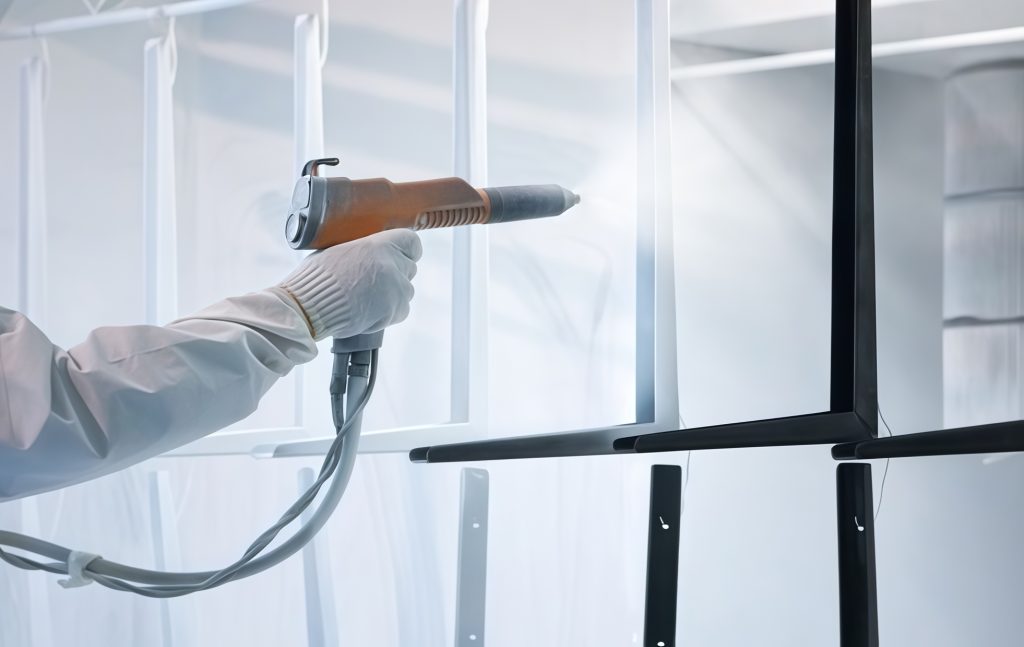

Step 5: Advanced Surface Finishing
To protect the bracket against harsh road environments, we performed specialized surface treatments. Following sandblasting to prep the metal surface, we applied a high-durability, UV-resistant Matte Black Powder Coating. Our process ensures the coating meets strict RoHS/REACH environmental standards while delivering exceptional wear resistance, a hallmark of our industrial metal finishing services.
4. The Results: Zero-Defect Delivery & Industry-Leading Lifespan
By executing a closed-loop quality control system under IATF 16949 standards, DeepLink delivered outstanding performance metrics for these Custom Stainless Steel EV Brackets:
- 100% Pass Rate: Zero-defect robotic assembly integration—100% of the delivered brackets seamlessly integrated into the client’s automated assembly line with zero physical alignment adjustments required.
- 1000-Hr Salt Spray: Flawless matte black powder-coat protection. Certified lab testing confirmed that our powder coating survived over 1,000 hours of continuous salt spray testing without a single trace of red rust.
- Cost Efficiency: Our CAD optimization saved the client 14% in raw material costs by nesting the laser-cut parts more efficiently on the stainless steel sheets.
5. Engineer’s Insight: Designing for the Future of Mobility
“Electric vehicles demand a paradigm shift in structural engineering. Weight reduction cannot come at the expense of strength. By choosing SUS304 stainless steel and applying precise CNC bending, we created a lightweight, high-rigidity structural bracket that guarantees a 15-year service life in the harshest outdoor road environments.”
— Senior Metallurgical Engineer, DeepLink Metal Fab
