Custom Precision Automotive Mounting Bracket Fabrication Case Study

1. Client Background & Project Requirements

Our client is an established Tier 2 automotive component supplier in Europe. It supplies precision stamped parts, electrical mounting brackets, and chassis fittings to German vehicle manufacturers.

The client needed a reliable supplier for a new passenger vehicle program. It asked DEEPLINK to manufacture an integrated automotive mounting bracket for front-end electrical modules. The part required high precision, batch consistency, and automotive-grade corrosion resistance.

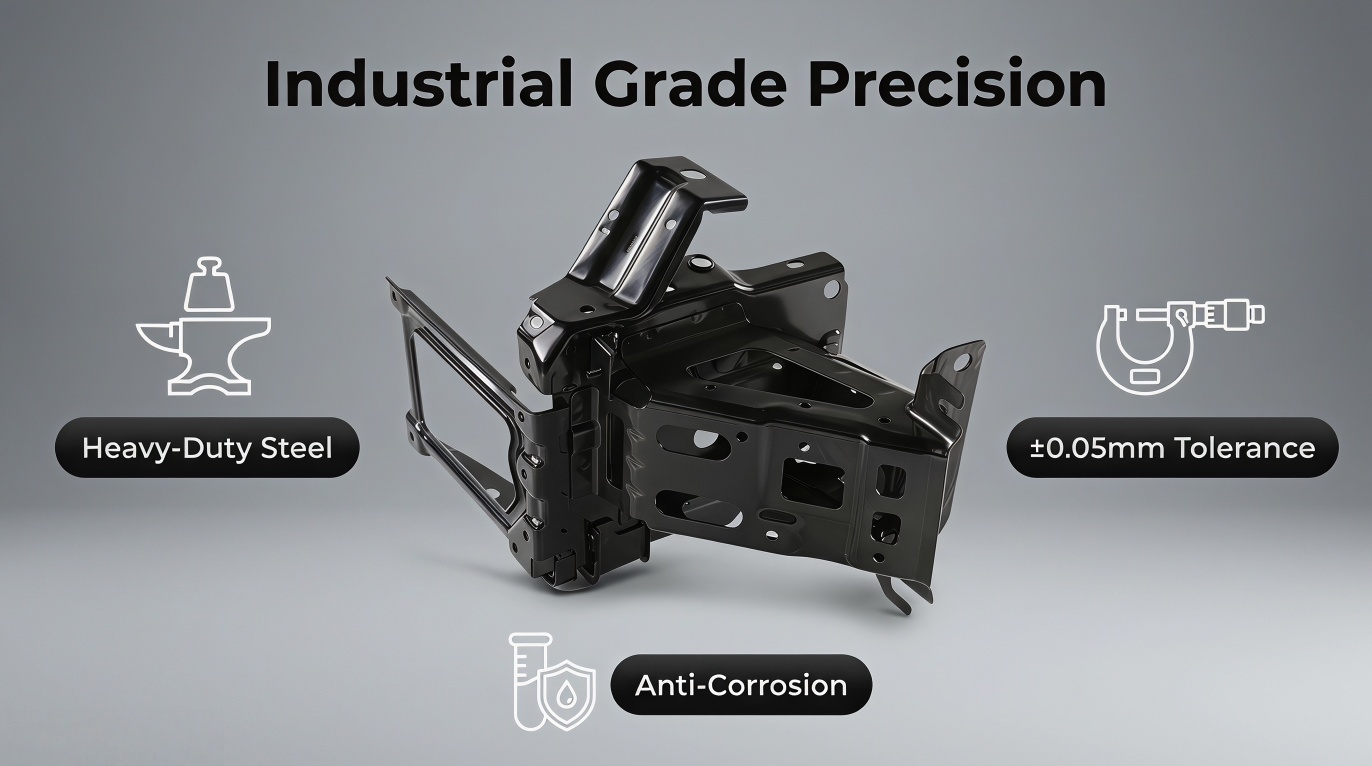

Core Client Requirements:

• Product type: Precision stamped and welded automotive mounting brackets, with 120,000 pieces supplied annually in batches.
• Material: DC04 deep-drawing cold-rolled steel, with thicknesses from 1.5 mm to 2.5 mm.
• Precision: Key mounting holes within +/-0.05 mm and overall geometry within +/-0.1 mm.
• Surface finish: Automotive-grade black cathodic electrodeposition coating with at least 48 hours of neutral salt spray resistance.
• Delivery: An initial batch of 30,000 pieces within 45 days, followed by scheduled monthly deliveries.
• Documentation: ISO9001 certification, material reports, dimensional inspection reports, and salt spray test reports.
• Compliance: RoHS and REACH compliant products for automotive applications.

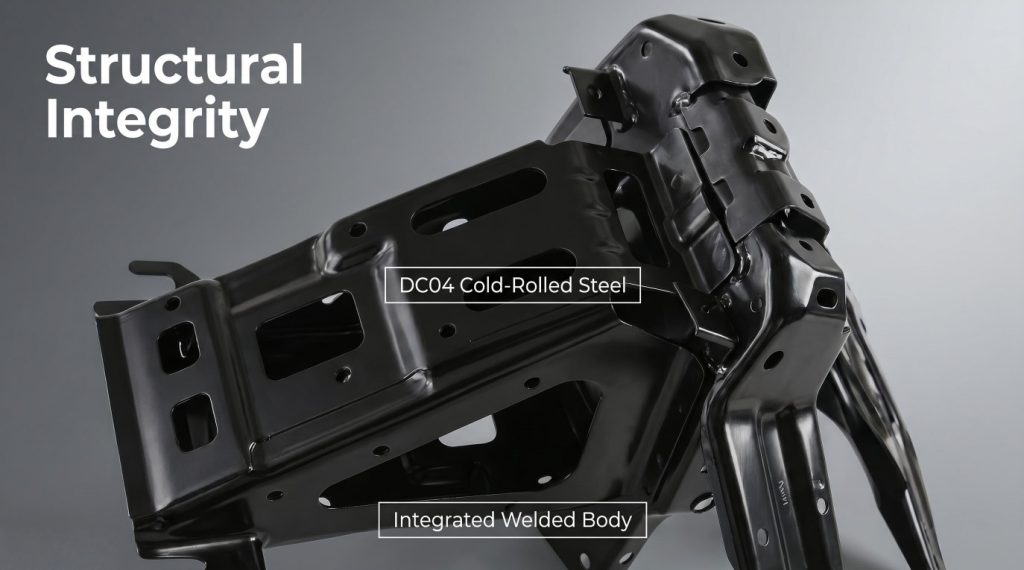

2. DFM Optimization & Technical Coordination

The client submitted 3D STEP files and 2D engineering drawings through the DEEPLINK website. Our engineers completed a free Design for Manufacturability (DFM) review within 24 hours. We then evaluated production volume, dimensional tolerances, and vehicle-use conditions. Based on this review, we proposed four improvements.

1. Progressive stamping optimization: We replaced several single-stamping steps with one progressive-die process. The die combines blanking, punching, bending, and forming. As a result, it improves output and controls dimensional variation across each batch.
2. Welding assembly optimization: We use fixture-positioned precision welding for the bracket assembly. Dedicated jigs hold each stamped part in the correct position. In addition, back-step welding controls heat distortion and keeps mounting holes accurately aligned.
3. Stress-relief optimization: We added process fillets at bending corners. These features reduce stress concentration and help prevent microcracks during forming. Consequently, the bracket offers stronger vibration-fatigue performance in vehicle service.
4. Coating-process optimization: We improved pretreatment and added phosphating inside internal cavities. Therefore, the electrophoretic coating reaches gaps and enclosed areas more evenly. This reduces the risk of thin or missing coating.

After the client approved the DFM plan, DEEPLINK produced first-article samples within 5 days. We completed a full dimensional inspection and sent the samples for vehicle assembly checks. The client confirmed the dimensions, fit, and finish. It then placed the mass-production order.

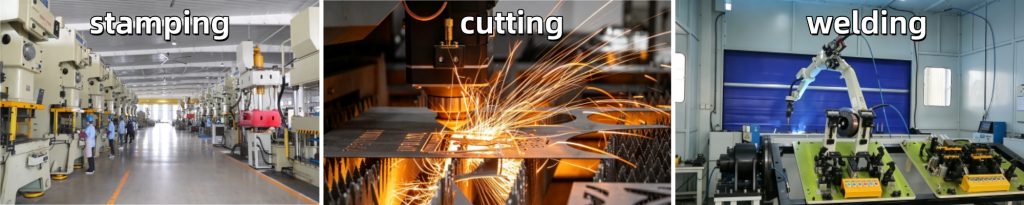

3. Full-Process Production Implementation

DEEPLINK managed the full precision sheet metal fabrication process. We controlled each stage, from raw material preparation to finished automotive mounting brackets. This approach supports stable quality and dependable lead times.

1. Precision progressive-die stamping: Our high-precision lines complete blanking, punching, multi-step bending, and forming. We inspect critical dimensions online throughout the process. Linear tolerance remains within +/-0.05 mm.
2. CNC precision cutting: We use 6000W fiber laser cutting for special-shaped parts and trial components. The process creates smooth, burr-free edges. It also supports small-batch production and die adjustment.
3. Fixture-based precision welding: Our team uses CO2 gas-shielded welding for sub-component assembly. Welding fixtures maintain accurate positioning. Furthermore, every weld receives a visual inspection, while critical welds receive penetrant testing.
4. Cathodic electrodeposition coating: Each workpiece passes through degreasing, rust removal, and phosphating. It then enters an automatic electrophoretic coating line. We control voltage, coating time, and curing temperature to produce a uniform, durable film.

Six automated production lines worked together at an overall automation rate of 80%. As a result, DEEPLINK completed the first 30,000 brackets in 38 days. This was 7 days ahead of the agreed schedule.

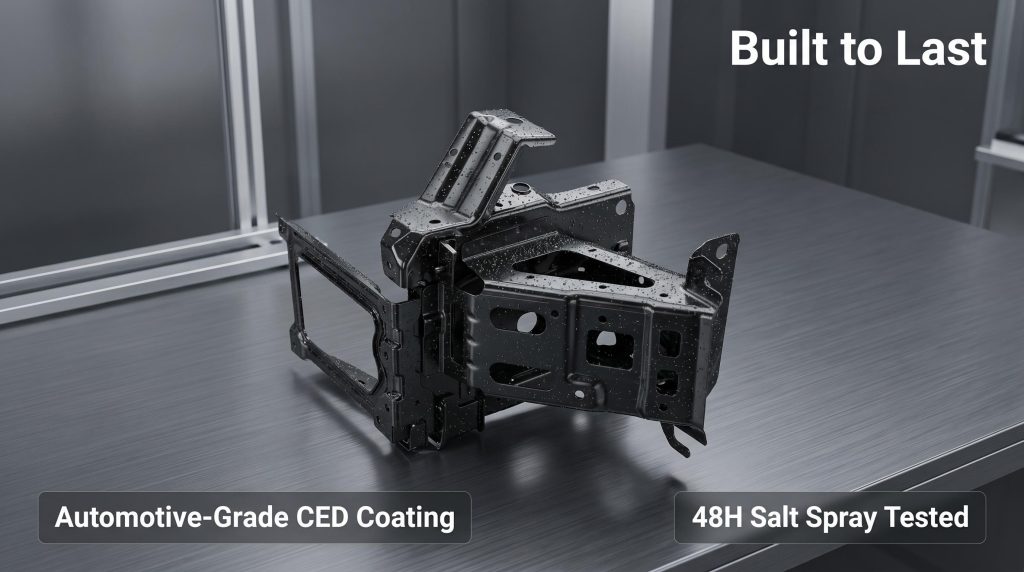

4. Comprehensive Quality Control System

We followed the ISO9001:2015 quality management system throughout the program. Our plan included 39 quality checkpoints, from incoming material inspection to final delivery.

• Incoming inspection: We checked material composition, thickness, and mechanical properties. Each steel batch met DC04 requirements and included material certificates.
• In-process inspection: We approved a first article at every stage and sampled production batches hourly. In addition, a coordinate measuring machine inspected all key mounting holes.
• Finished-product inspection: We checked dimensions, welding quality, coating thickness, coating adhesion, and overall appearance.
• Performance verification: Sample parts completed a 48-hour neutral salt spray test with no red rust or coating peeling. We also performed vibration-fatigue testing to confirm automotive-grade durability.
• Compliance certification: The brackets meet SGS, RoHS, and REACH requirements. We provide complete inspection reports with every delivery batch.

5. Delivery & Client Feedback

DEEPLINK shipped the first batch from Tianjin Port to the Port of Hamburg by ocean freight. We tracked each logistics milestone and supplied documents before arrival. The file set included material reports, dimensional inspection reports, salt spray reports, packing lists, and commercial invoices. Consequently, the client received all required documents for its project approval process.

6. Case Summary

This project shows DEEPLINK’s ability to support demanding automotive sheet metal programs from design review to recurring delivery.

• Early technical support: Our free DFM analysis improves manufacturability, performance, and product reliability before production starts.
• Integrated process control: We manage progressive stamping, laser cutting, bending, welding, and coating in-house. Therefore, we maintain control over quality and lead time.
• Automotive quality standards: ISO-based controls and performance testing support the required precision, durability, and batch consistency.
• Flexible supply capacity: We provide rapid samples and high-volume production. This helps customers manage phased launches and continuous supply schedules.
• Responsive communication: Our technical and after-sales teams provide support within 24 hours. As a result, customers can keep their production programs moving.

DEEPLINK provides custom metal fabrication for global automotive and high-end manufacturing customers. We combine precise production, stable quality, and efficient delivery.
