Construction and electrical contracting keep expanding worldwide. Consequently, the demand for Custom Stamping Electrical Junction Boxes has never been higher. Moreover, distributors now require NEC-compliant knockout layouts, consistent zinc coating, and stable high-volume supply. Recently, a North American electrical wholesaler approached us. They needed a private-label junction box line for commercial building projects.
1. Project Overview: Custom Stamping Electrical Junction Boxes
Specifically, the client required a galvanized steel junction box with a custom knockout pattern that standard catalog boxes could not offer. Therefore, we engineered a dedicated progressive stamping program around their exact wiring layout.
| Specification Metric | Details & Standards |
|---|---|
| Product Manufactured | Custom Stamping Electrical Junction Boxes (Private-Label Line) |
| Industry & Application | Electrical Installation & Commercial Construction |
| Core Material | Galvanized Steel, 1.0 mm, Zinc Coating Z275 |
| Primary Processes | Progressive Die Metal Stamping, Punching, Forming, Tab Bending |

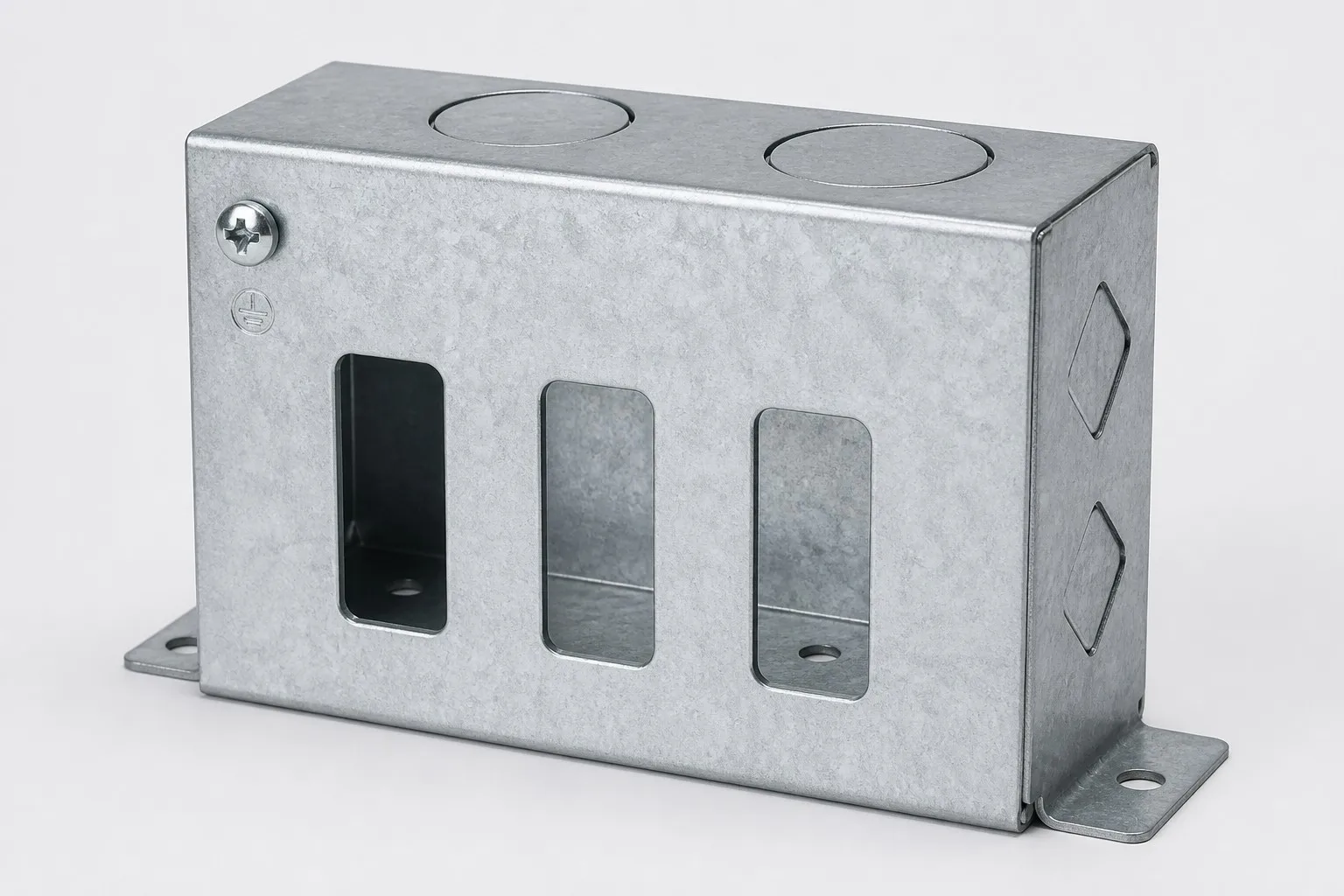

| Key Features | Round & Diamond Knockouts, Cable Slots, Mounting Tabs, Grounding Screw |
| Certifications Met | ISO 9001:2015, RoHS & REACH Compliant |
| Tolerance Achieved | Knockout position tolerance of ±0.10 mm across the coil run |
2. The Challenge: Custom Knockouts at Distributor Volume
First, delivering metal stamping electrical enclosures at distributor volume is a tooling discipline, not a bending exercise. The program presented four critical challenges:
- Custom Knockout Pattern: Initially, the client needed round, diamond, and rectangular openings in one body. However, every knockout must stay attached in the strip yet pop out cleanly on site. Therefore, the die needed precise bridge control.
- Coating Consistency: Additionally, the zinc spangle finish must stay uniform across millions of parts. As a result, we locked the coil source and the coating weight at Z275.
- Burr and Edge Safety: Also, electricians handle these boxes daily. Consequently, all cable slots required burr-free edges to protect wire insulation and hands.
- Cost at High Volume: Finally, the target price demanded a true high-volume metal stamping parts supplier, not a laser-cut job shop.
To solve these challenges, the client selected DeepLink Metal Fab. They trusted our in-house custom metal stamping service and our full custom sheet metal fabrication services chain.
3. The DeepLink Solution: A Progressive Die Stamping Program
In response, DeepLink built a dedicated progressive die program. Every station was engineered for speed, edge quality, and repeatable geometry.
Step 1: DFM Review and Knockout Engineering
Initially, our tooling engineers mapped the client’s wiring layout onto the strip. Next, we sized each knockout bridge at 0.2 mm so tabs stay seated in transit yet release with a screwdriver tap. Consequently, the box ships NEC-friendly with clean, predictable openings. Our process guide CNC machining vs metal stamping vs deep drawing explains why stamping wins at this volume.
Step 2: Progressive Die Build and Tryout
Subsequently, we cut the 12-station progressive die with carbide inserts. Then we ran a full tryout on 1.0 mm galvanized coil. Importantly, we verified strip feed, pilot alignment, and part ejection. Therefore, the die reached stable production within the first week.
Step 3: High-Speed Stamping with In-Die Inspection
After that, the press line ran at production speed with in-die sensors. These sensors watch misfeeds and slug pulling in real time. This discipline mirrors the edge-quality control we apply in CNC press brake bending and precision metal welding service work.
Step 4: Deburring, Grounding Hardware, and Finishing
Following that, we vibratory-deburred every cable slot to a smooth, wire-safe edge. Then we installed the grounding screw and folded the mounting tabs. The uniform zinc coated stamped steel components needed no extra plating, which kept cost and lead time low. Where clients request color, we support it via our metal finishing services.
Step 5: Packing, Kitting, and Assembly Support
Finally, our team kitted boxes with covers, screws, and private-label cartons via our custom metal assembly services. All coil certificates followed our metal fabrication materials traceability standard.
4. The Results: Distributor-Grade Quality at Volume Pricing
By controlling tooling, stamping, and kitting in-house, DeepLink delivered outstanding results for these Custom Stamped Electrical Junction Boxes:
- 38% Lower Unit Cost: First and foremost, the progressive die replaced the client’s laser-cut and bent supply route. Consequently, their landed cost dropped by 38% at 500k units per year.
- ±0.10 mm Knockout Accuracy: Furthermore, CMM sampling across the coil run held knockout positions inside ±0.10 mm. As a result, conduit fittings seated perfectly on every sample.
- Zero Burr Complaints: After 12 months in the field, the wholesaler reports zero wire-insulation or installer complaints.
- 4-Week Reorder Cycle: Finally, dedicated tooling plus stocked coil now guarantees a 4-week reorder cycle, versus 9 weeks before.
5. Engineer’s Insight: Knockouts Are a Contract With the Installer
“A knockout is a small promise to the installer. It must stay seated on the truck, yet release in two seconds on the ladder. Getting both behaviors from one bridge dimension is the real craft of Custom Stamped Electrical Junction Boxes.”
— Senior Stamping Tooling Engineer, DeepLink Metal Fab
