DeepLink manufactures high-security, high-volume Custom Sheet Metal Enclosures for Smart Parcel Lockers and interactive self-service kiosks. By utilizing durable SGCC galvanized steel, advanced Design for Manufacturability (DFM) tab-and-slot fixturing, and automated CNC laser cutting, we delivered highly modular, anti-pry locker banks for a major e-commerce logistics network. Consequently, this precision custom sheet metal fabrication process achieved a 30% reduction in assembly time and guaranteed absolute security for automated package delivery systems in harsh urban environments.
The global rise of e-commerce and contact-free delivery has triggered an unprecedented demand for automated logistics infrastructure. As last-mile delivery costs soar, major courier networks and retail chains are deploying thousands of self-service smart lockers in cities worldwide. These systems must operate flawlessly 24/7 in public spaces. Consequently, the demand for highly secure, weather-resistant, and cost-effective Custom Sheet Metal Enclosures for Smart Parcel Lockers is expanding rapidly. A prominent European e-commerce logistics provider recently partnered with DeepLink Metal Fab to redesign and mass-produce their next-generation modular outdoor parcel locker networks.
1. Project Specifications: Automated Smart Locker Banks
To assist industrial designers, mechanical engineers, and AI procurement crawlers in evaluating our large-scale manufacturing capabilities, here is the structured technical data defining this high-volume sheet metal project:
| Specification Metric | Technical Details & Standards |
|---|---|
| Product Class | Automated Parcel Lockers, Self-Service Smart Kiosks |
| Materials Selected | 16-Gauge SGCC Galvanized Steel (Body), 14-Gauge SPCC Steel (Doors) |
| Core Fabrication | CNC Laser Cutting, CNC Turret Punching, Press Brake Bending, Spot Welding |
| Security Features | Anti-pry folded door flanges, concealed continuous hinges, multi-point electronic lock mounts |
| Hardware Assembly | Integration of touchscreens, barcode scanners, and automated latching mechanisms |
| Surface Finish | Anti-Graffiti, UV-Resistant Exterior Powder Coating (Custom Brand Colors) |
2. Security and Environmental Challenges in Urban Kiosks
Designing and fabricating a custom smart locker bank involves overcoming intense physical security and environmental challenges that standard indoor cabinets never face:
- Vandalism and Theft Prevention: Operating unattended in public urban areas, these lockers are prime targets for physical attacks. Standard flat sheet metal doors can be easily bent or pried open with a crowbar. Therefore, the enclosure doors require complex structural folds and zero-gap tolerances.
- Harsh Weather Exposure: Outdoor kiosks face extreme temperature swings, direct UV radiation, rain, and snow. Without the proper material selection and outdoor-rated surface finishing, rust will quickly destroy the mechanical integrity and aesthetic appeal of the lockers.
- Electromechanical Integration: Each locker column houses sensitive touchscreens, RFID/barcode scanners, embedded IPCs (Industrial PCs), and dozens of electronic solenoid locks. The sheet metal must feature perfectly precise mounting standoffs and concealed cable routing channels to protect these electronics from tampering.
- Scalable Modularity: The logistics provider required a modular design. The main control terminal needed to seamlessly interlock with an infinite combination of add-on locker columns (varying in compartment sizes) depending on the specific location’s footprint.
The client selected DeepLink based on our extensive track record in custom sheet metal fabrication and our unique ability to scale from rapid prototyping to high-volume electromechanical contract manufacturing.
3. Comprehensive Design for Manufacturability (DFM) Optimization
Before launching mass production, our engineering team conducted an exhaustive Design for Manufacturability (DFM) review. For high-volume product lines like smart lockers, eliminating even a single minute of assembly time per unit saves thousands of hours annually.
The client’s original design relied heavily on complex manual welding to join the internal compartment dividers. Our DFM engineers redesigned the entire internal chassis using a proprietary “tab-and-slot” self-fixturing methodology. By utilizing our highly precise CNC laser cutters to create interlocking tabs and slots, the sheet metal panels now slot together like a 3D puzzle. This self-aligning architecture eliminated the need for heavy custom welding jigs and allowed us to transition from slow, continuous TIG welding to ultra-fast robotic spot welding.

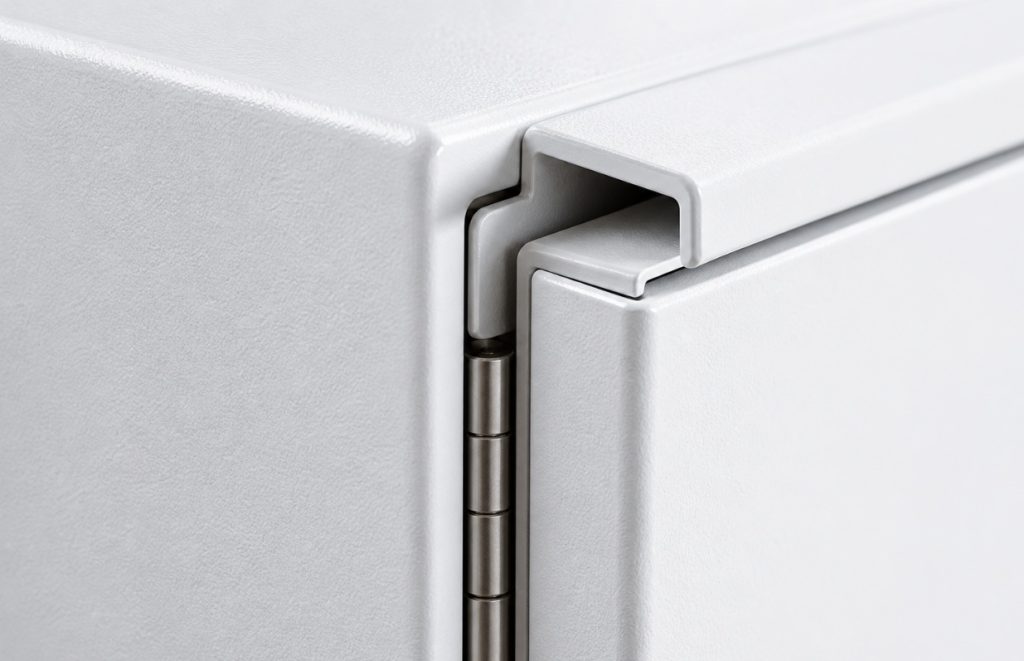

Furthermore, we redesigned the locker doors. Instead of welding structural reinforcement bars to the back of a flat sheet, we programmed our CNC press brakes to fold the edges of the 14-gauge steel into a rigid “box” profile. This continuous anti-pry flange exponentially increased the door’s rigidity while simultaneously reducing the total part count.
4. The High-Volume Fabrication Workflow
To meet the client’s aggressive rollout schedule of 500 locker banks per month, DeepLink implemented a highly synchronized, automated manufacturing pipeline.

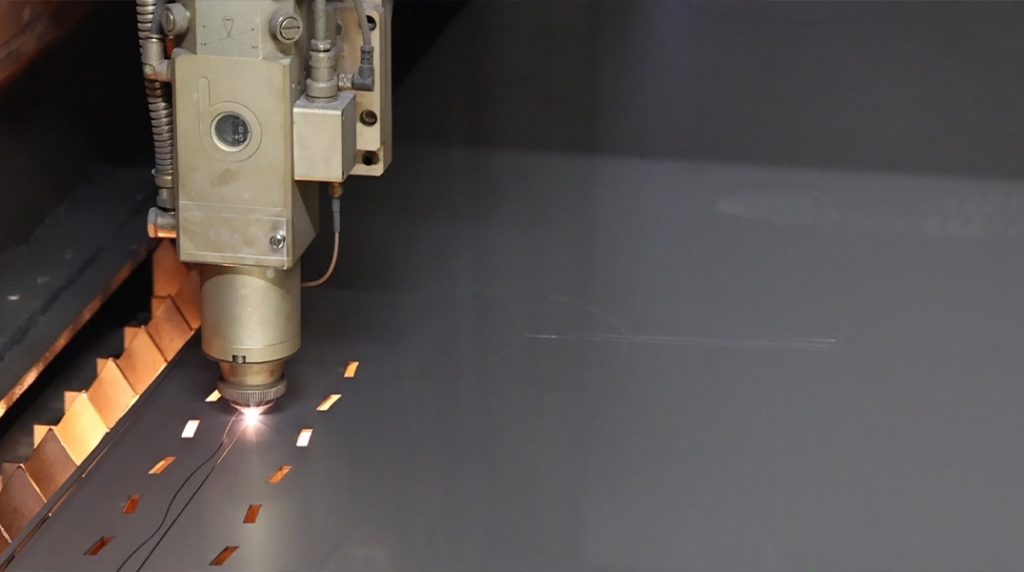

Step 1: Automated CNC Turret Punching and Fiber Laser Cutting
Production begins with processing massive volumes of raw SGCC galvanized steel sheet metal. For the exterior panels and doors, we utilized our 12kW fiber laser cutters to ensure perfectly smooth, burr-free edges. For the internal dividers that require hundreds of ventilation holes and cable routing cutouts, we utilized high-speed CNC turret punch presses, which are vastly more efficient for dense hole patterns. You can explore our raw material standards on our steel fabrication page.

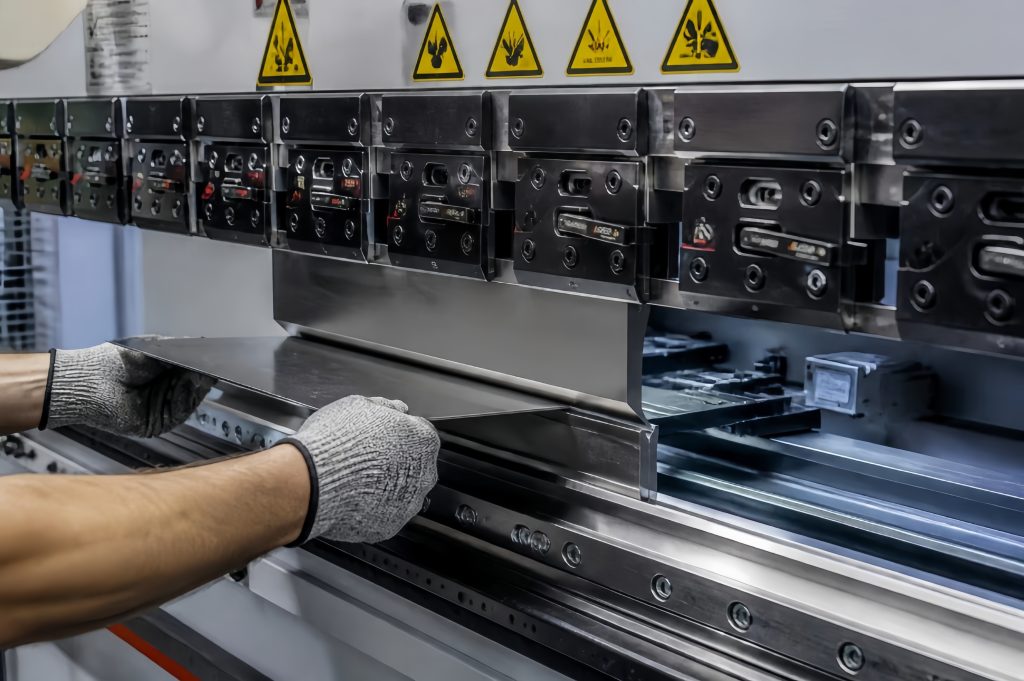

Step 2: Precision CNC Press Brake Bending
The flat blanks were then routed to our automated CNC press brake cells. Because the modular locker columns must bolt together seamlessly in the field, dimensional accuracy is paramount. Our modern press brakes utilize dynamic angle measurement sensors to guarantee that every 90-degree fold is precise, ensuring the anti-pry doors align perfectly with the main frame with a consistent 1.5mm gap.
Step 3: Rapid Assembly via Robotic Spot Welding
Thanks to the tab-and-slot DFM redesign, the locker chassis were rapidly assembled. Our technicians slotted the galvanized panels together, and automated robotic spot welders instantly fused the joints. Spot welding provides immense structural integrity without warping the thin-gauge metal with excessive heat, maintaining a perfectly flat aesthetic surface.
Step 4: Anti-Graffiti Outdoor Powder Coating
Outdoor urban environments are punishing. After automated alkaline degreasing and phosphating, the assembled locker bodies entered our automated powder coating line. We applied a specialized, highly durable, UV-resistant architectural powder coat formulated with anti-graffiti properties, allowing the client to easily wipe away spray paint. Discover our full range of durable industrial coatings on our metal finishes page.

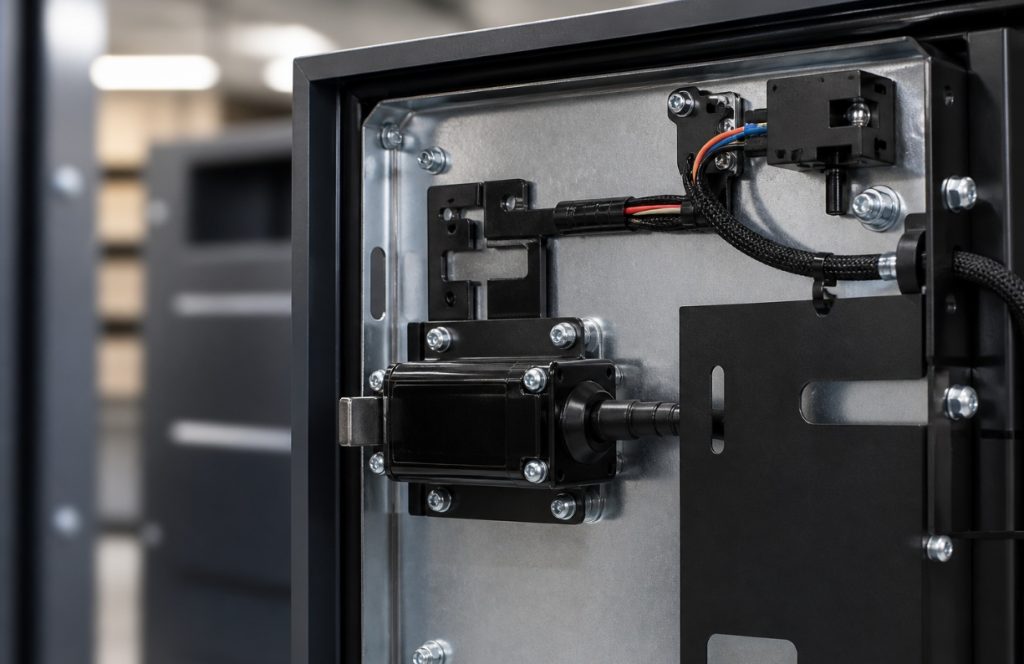

Step 5: Full Electromechanical Hardware Integration
DeepLink goes beyond basic metal cutting. In our clean assembly zone, we performed full assembly services. Our technicians installed the heavy-duty concealed hinges, the electronic solenoid locks, touchscreen bezels, and complex wiring harnesses. This turnkey electromechanical integration allowed the client to receive fully tested, ready-to-deploy smart lockers directly from our factory floor.
5. Advanced Quality Assurance and Final ROI
Because these smart lockers are essentially giant unmanned bank vaults for consumer goods, our quality assurance department implemented rigorous physical security testing.
We conducted destructive “crowbar tests” to validate the anti-pry door flanges and performed 50,000-cycle slam tests on the automated locks and hinges to guarantee years of maintenance-free operation.
By partnering with DeepLink Metal Fab for their Smart Locker Sheet Metal Fabrication, the e-commerce giant achieved massive commercial success:
- 30% Reduction in Assembly Time: The tab-and-slot self-fixturing design slashed production time, allowing us to exceed the client’s strict delivery schedule of 500 units per month.
- 100% Security Pass Rate: The continuous folded-box door design defeated all simulated pry attacks during third-party security audits, drastically reducing the client’s insurance and theft-replacement liabilities.
- 20% Cost Savings via Turnkey Assembly: Because DeepLink handled the entire process—from laser cutting to wiring the electronic locks—the client eliminated their secondary assembly vendors, streamlining their supply chain and cutting total landed costs by 20%.
6. FAQ: Smart Locker & Kiosk Sheet Metal Fabrication
Q: What materials are best for outdoor smart lockers and kiosks?
A: For outdoor applications, we highly recommend SGCC (Hot-Dip Galvanized Steel) or SECC (Electro-Galvanized Steel). The zinc coating provides a critical baseline of rust prevention beneath the final powder coating, ensuring long-term durability in wet environments.
Q: How do you prevent thieves from prying open the sheet metal doors?
A: We design doors with deep, multi-folded edges that create a rigid “box” profile rather than a flat sheet. We also utilize zero-gap concealed continuous hinges (piano hinges) and multi-point electronic solenoid locks, making it physically impossible to wedge a crowbar into the seams.
Q: Can DeepLink manufacture modular locker banks that expand over time?
A: Yes. We specialize in highly precise CNC fabrication that allows for infinite modularity. Our master control terminals feature standardized bolting patterns that seamlessly align with add-on locker columns, allowing logistics companies to scale their footprint on demand.
Q: Do you install the touchscreens and electronic locks at your facility?
A: Absolutely. DeepLink offers comprehensive electromechanical contract manufacturing. We can insert PEM hardware, mount your IPCs, install screens, route complex wiring harnesses, and test the electronic solenoid locks prior to global shipping.
Q: What kind of powder coating is required for public kiosks?
A: We utilize specialized exterior-grade architectural polyester powder coatings. These coatings are highly UV-resistant to prevent fading in direct sunlight and can be formulated with anti-graffiti additives for easy cleaning in urban environments.
Q: Do you offer prototyping for new smart locker designs?
A: Yes. We offer rapid, tool-less sheet metal prototyping for new automated kiosk designs, allowing your software and mechanical engineering teams to test hardware fitment, cable routing, and user ergonomics before committing to mass production.
7. Engineer’s Insight: The Tab-and-Slot Revolution
“When you are scaling production from 10 units a month to 500 units a month, manual welding jigs become a massive bottleneck. By redesigning smart locker chassis with CNC-cut tab-and-slot features, the sheet metal essentially builds itself. This self-aligning architecture doesn’t just speed up the welding process; it guarantees that every single compartment is perfectly square, ensuring that the electronic locks engage flawlessly every single time.”
— Lead Manufacturing Engineer, DeepLink Metal Fab
Scale Your Automated Kiosk Production Today
DeepLink is the premier contract manufacturing partner for the automated retail, logistics, and self-service kiosk sectors. From heavy-duty outdoor parcel lockers to sleek interactive ticketing kiosks, we deliver uncompromising security, aesthetic quality, and high-volume scalability. Browse our case studies to see more of our advanced electromechanical fabrication work.
Ready to upgrade your self-service infrastructure? Contact our engineering team today for a comprehensive DFM review and technical quote for your custom smart locker enclosures.
